Aurora's Standard Mechanical Bowden Cable Water Valve
Mechanical Water Valves control the heating performance via easy adjustable Bowden Cables. Standard connection diameters are ø 16mm / 18mm / 22mm / 28mm. Varied connecting diameters are also available upon request. This water valve has mostly linear operating characteristics, and operates efficiently with a minimum pressure loss. The valve housing is comprised of Polyamide 66 Material, providing Aurora’s line of water valves with lightweight and non-corrodible qualities.

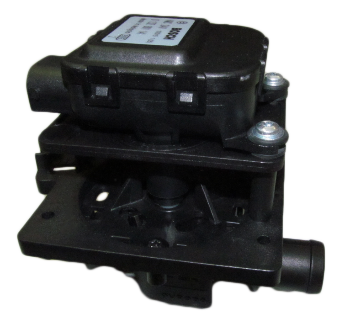

Aurora's 5-Pole Water Valves with Servo Motor
Electrical Water Valve with Servo Motor 5 – Pole with varied diameters. Standard connection diameters are 16mm / 22mm / 28mm. Control of this valve is steered by a 5-pole servo motor, providing easy adjustment of the heating performance. Varied connecting diameters are also available upon request. Servo Motors available in both 12 and 24 volt. This water valve has mostly linear operating characteristics, and operates efficiently with minimum pressure loss. The valve housing is comprised of Polyamide 66 Material, giving Aurora’s line of water valves with lightweight and non-corrodible qualities.
Flow medium: water with antifreeze mixture ratio max. 1:1
Volumetric flow: 100-1200 L / h
Operating temperature range: -40°C to +120°C
Environmental temperature range: -40°C to +85°C
Nominal pressure of the fluid: p = 1 bar relative
Test pressure of the water valve p1 = 2.5 bar relative
