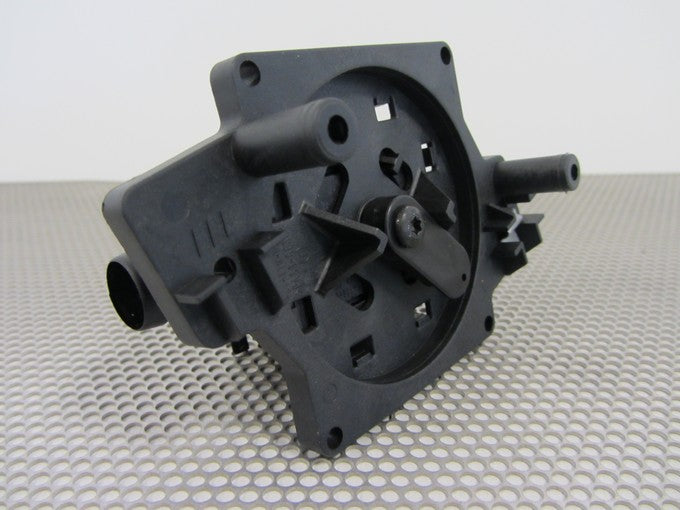

Aurora's Standard Mechanical Bowden Cable Water Valve
Mechanical Water Valves control the heating performance via easy adjustable Bowden Cables. Standard connection diameters are ø 16mm / 18mm / 22mm / 28mm. Varied connecting diameters are also available upon request. This water valve has mostly linear operating characteristics, and operates efficiently with a minimum pressure loss. The valve housing is comprised of Polyamide 66 Material, providing Aurora’s line of water valves with lightweight and non-corrodible qualities.
Aurora's Standard Mechanical Bowden Cable Water Valve
Mechanical Water Valves control the heating performance via easy adjustable Bowden Cables. Standard connection diameters are ø 16mm / 18mm / 22mm / 28mm. Varied connecting diameters are also available upon request. This water valve has mostly linear operating characteristics, and operates efficiently with a minimum pressure loss. The valve housing is comprised of Polyamide 66 Material, providing Aurora’s line of water valves with lightweight and non-corrodible qualities.
Flow medium: water with antifreeze mixture ratio max. 1:1
Volumetric flow: 100-1200 L / h
Operating temperature range: -40°C to +120°C
Environmental temperature range: -40°C to +85°C
Nominal pressure of the fluid: p = 1 bar relative
Test pressure of the water valve p1 = 2.5 bar relative
